Let's Identify Your ATM & EPP's Make and Model

We understand verifying your keypad (EPP) can be complex, but we’re here to help. Each manufacturer has provided upgrade instructions, and we’ve included them to guide you on whether your ATM requires an EPP upgrade or replacement. For further assistance, contact us at 248-932-5400.

Step #1 - Identifying Your Machine's Make and Model:

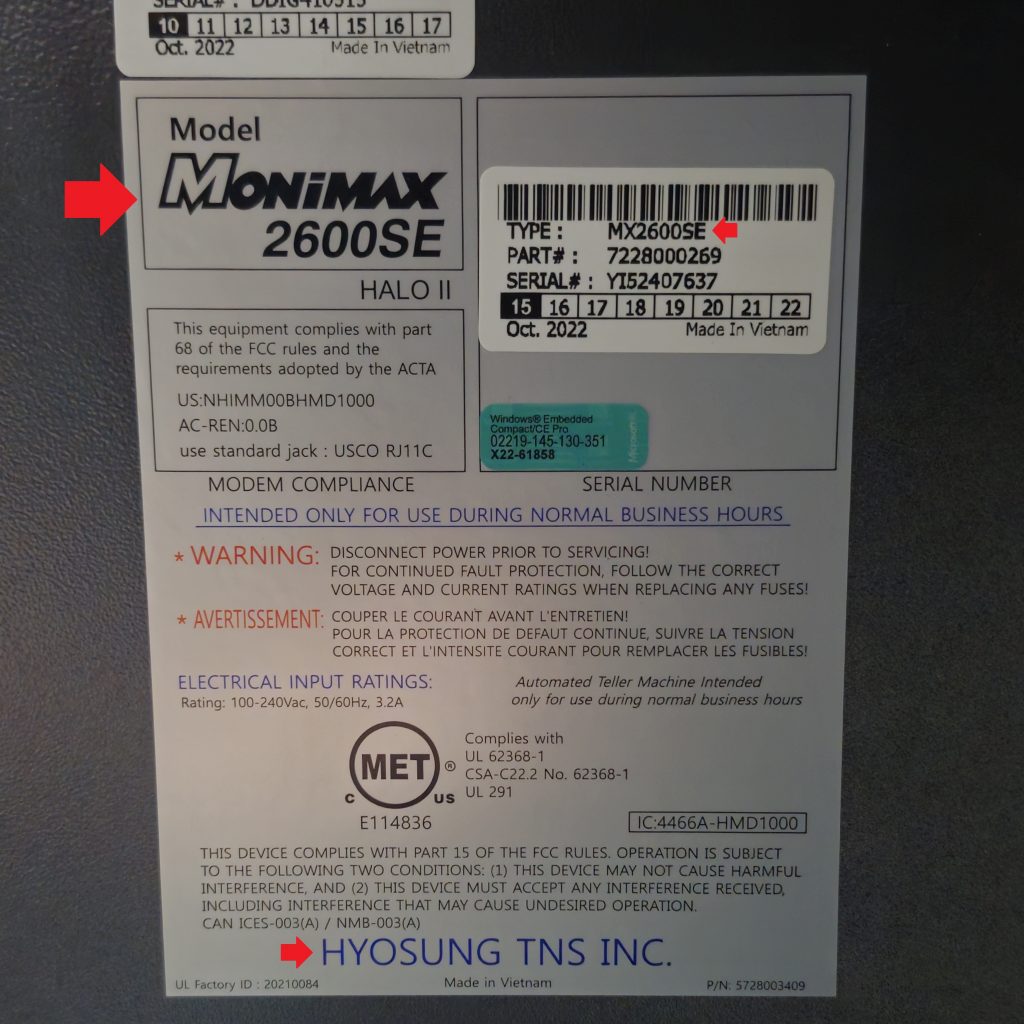

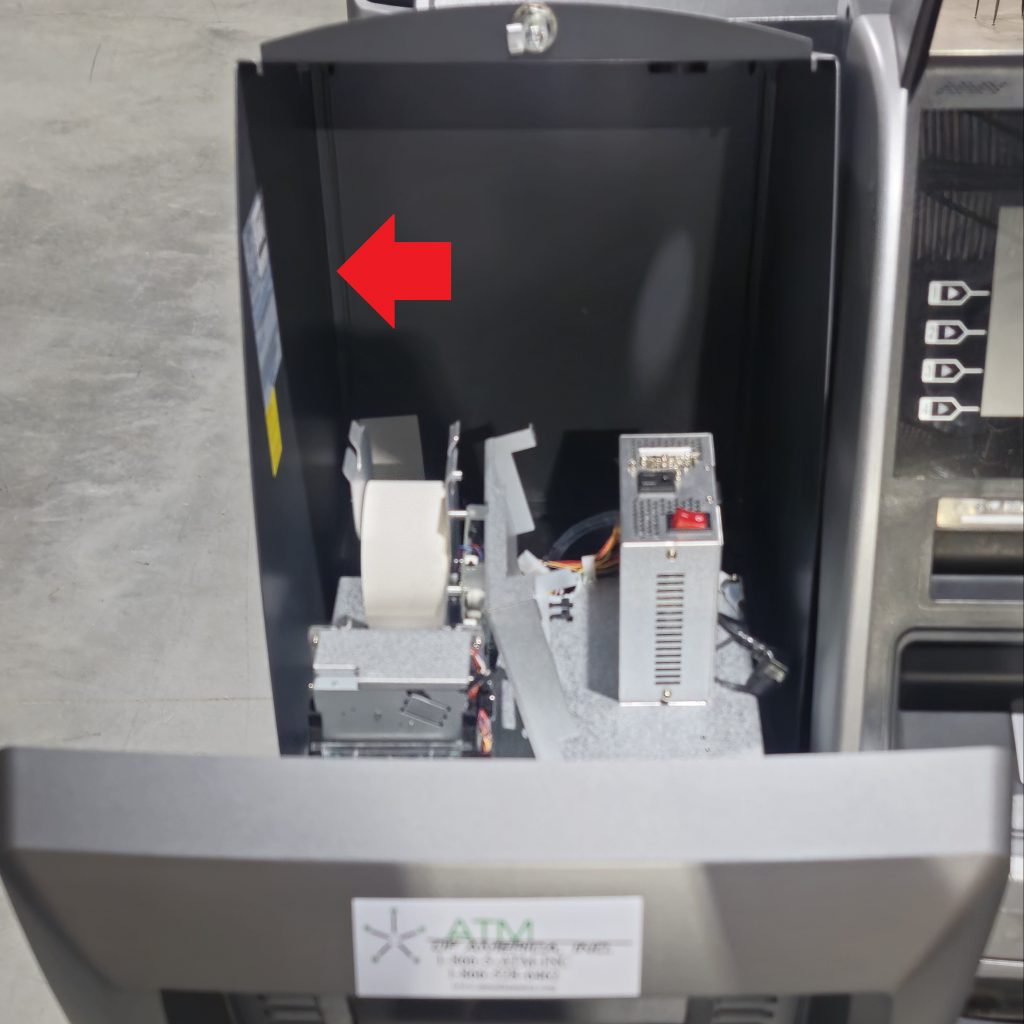

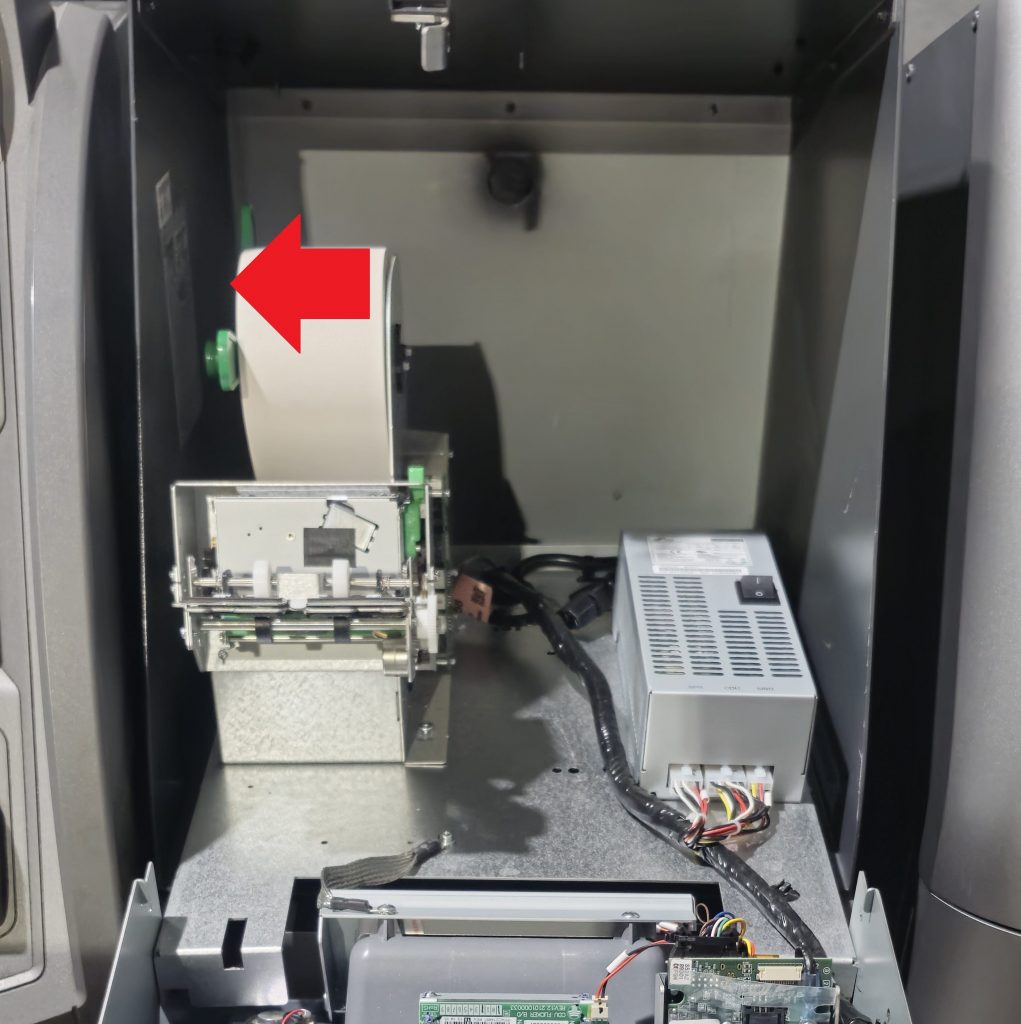

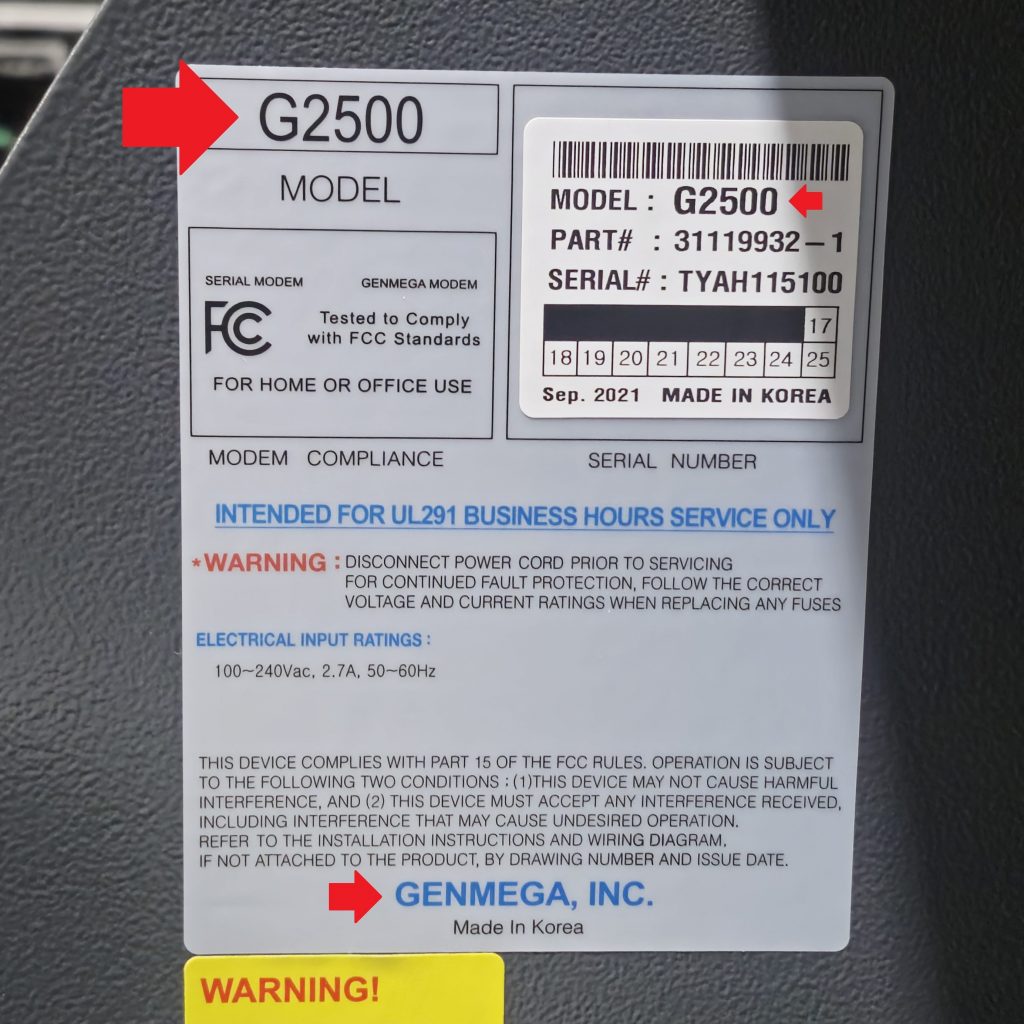

To identify the make and model of your retail ATM, begin by opening the top hatch of the machine. Typically, on the left-hand side, you will find a label or sticker that contains important information. This label will display the Manufacturer’s name (such as Hyosung, Hantle, Genmega, or Triton), as well as the specific Model of the ATM (examples include 2700SE, G2500, 1700W, or Argo 15). Ensuring you have the correct make and model details is important for maintenance, upgrades, and compliance purposes.

Step #2 - Identifying your EPP (Keypad):

Locate the label beneath your keypad (Electronic Pin Pad or EPP). This sticker will provide essential information, including the Type (e.g., EPP-6000K, EPP-8000R, B1, B2), as well as a Part Number and Serial Number. Be sure to record this information for future reference, as it will help determine whether your keypad requires an upgrade to meet current compliance standards

Step #3 - Refer to the Tables Below to Determine if Upgrade is Necessary

Using the tables below, identify whether your specific ATM and EPP model require a keypad upgrade or a full ATM replacement.

If an EPP upgrade is needed, contact our service team at 248-932-5400 with your Terminal ID, ATM, and EPP Make & Model, to order parts and schedule installation. Pricing will be provided at the time of dispatch.

In some cases, a full replacement may be necessary due to hardware or software limitations. We will assist with a smooth transition if needed.

For new ATMs, please ask for Jason. We offer various Hyosung and Genmega models and will guide you from selection through installation.

If you have any questions, contact us to ensure no service interruptions before the January deadline.

Hyosung Compatibility Breakdown

HYOSUNG PHYSICAL KEYPAD IDENTIFICATION

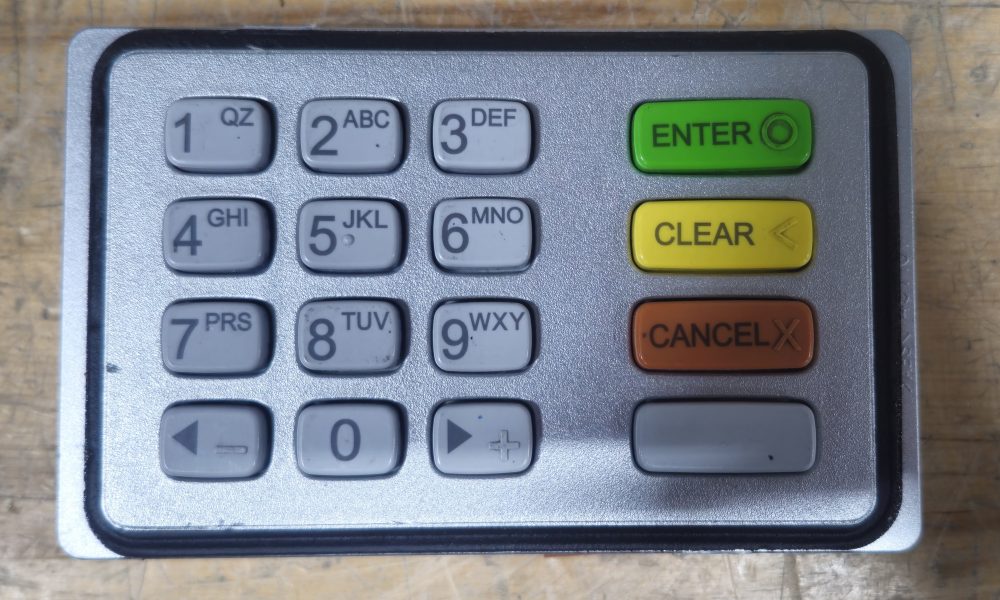

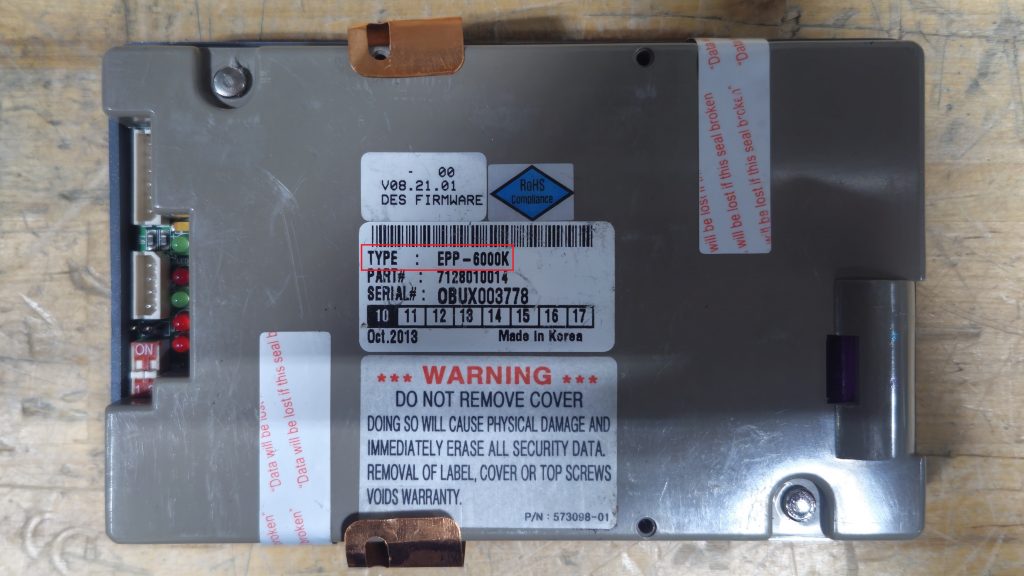

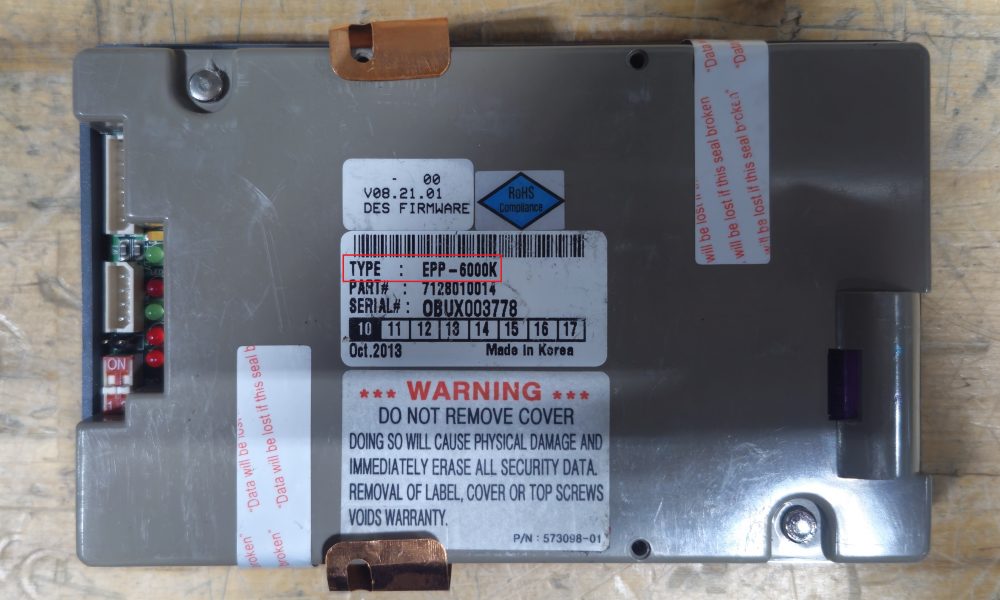

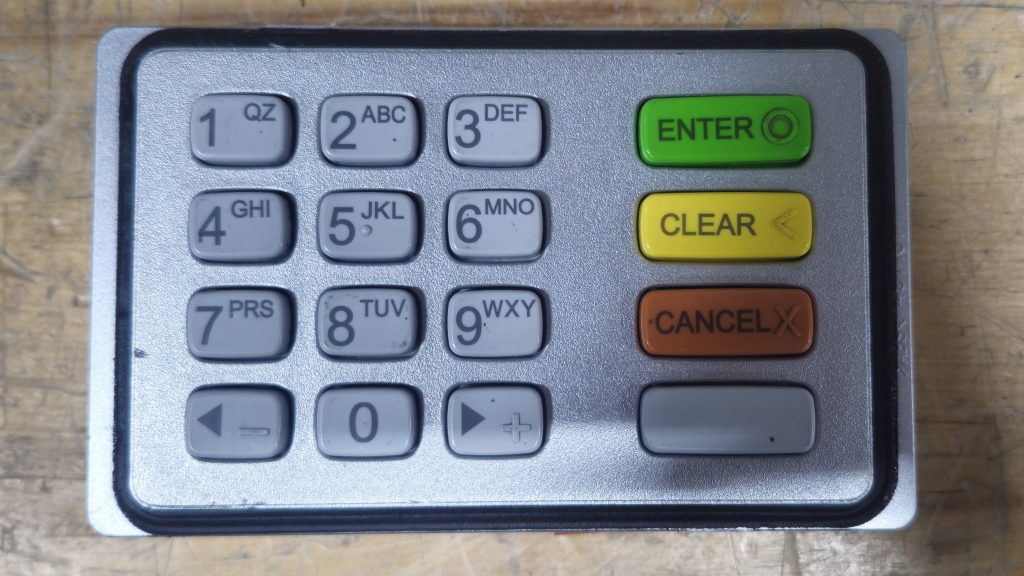

5000K or 6000K/R – buttons are not flat with body and no external pressure switches.

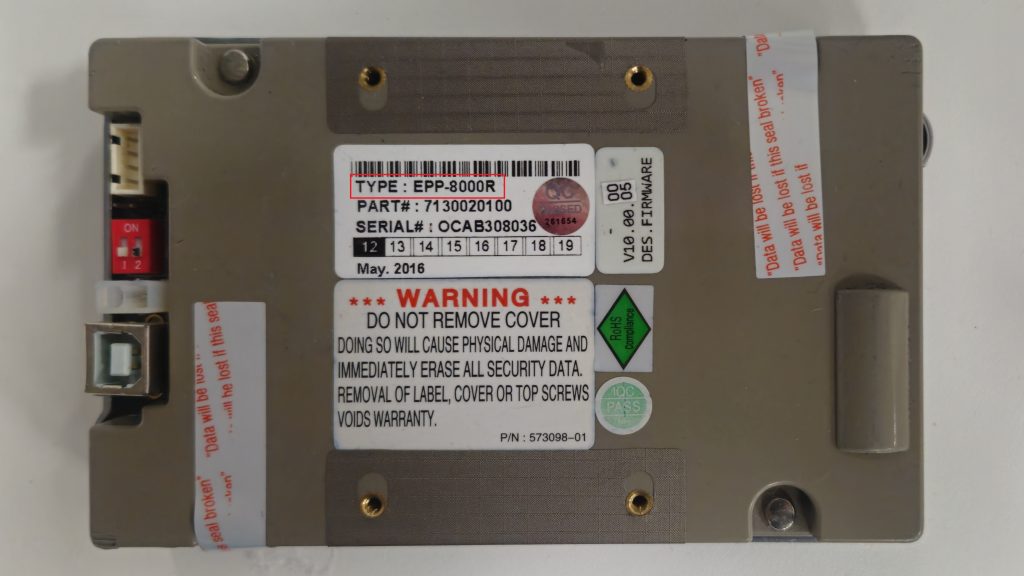

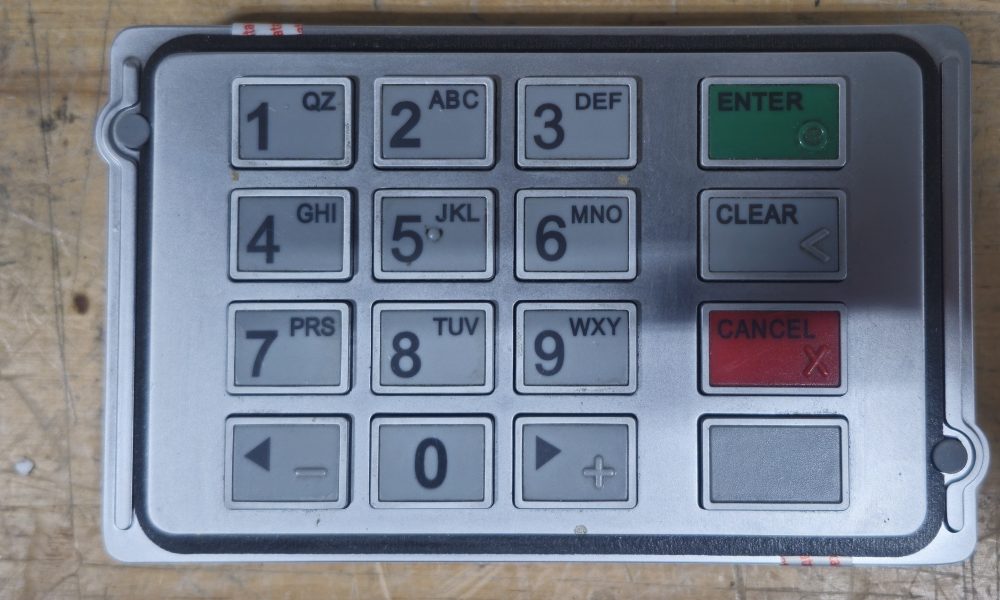

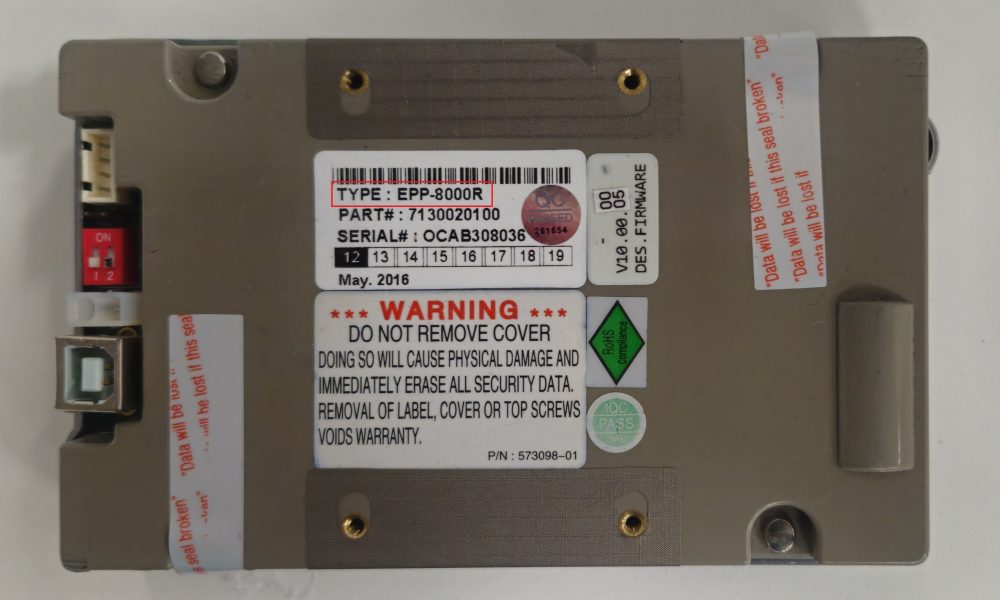

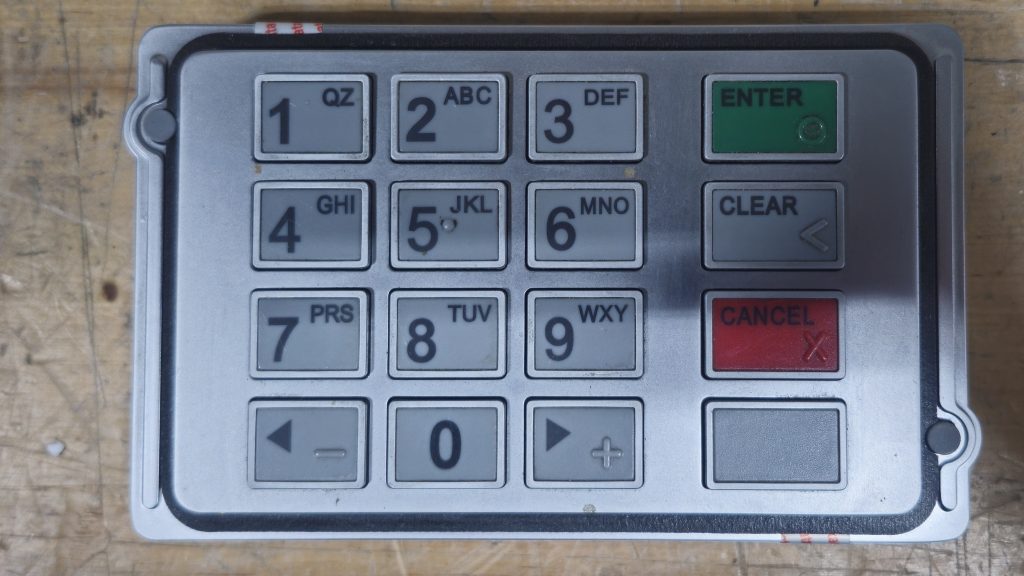

8000R – buttons are flatter with body and external pressure switches.

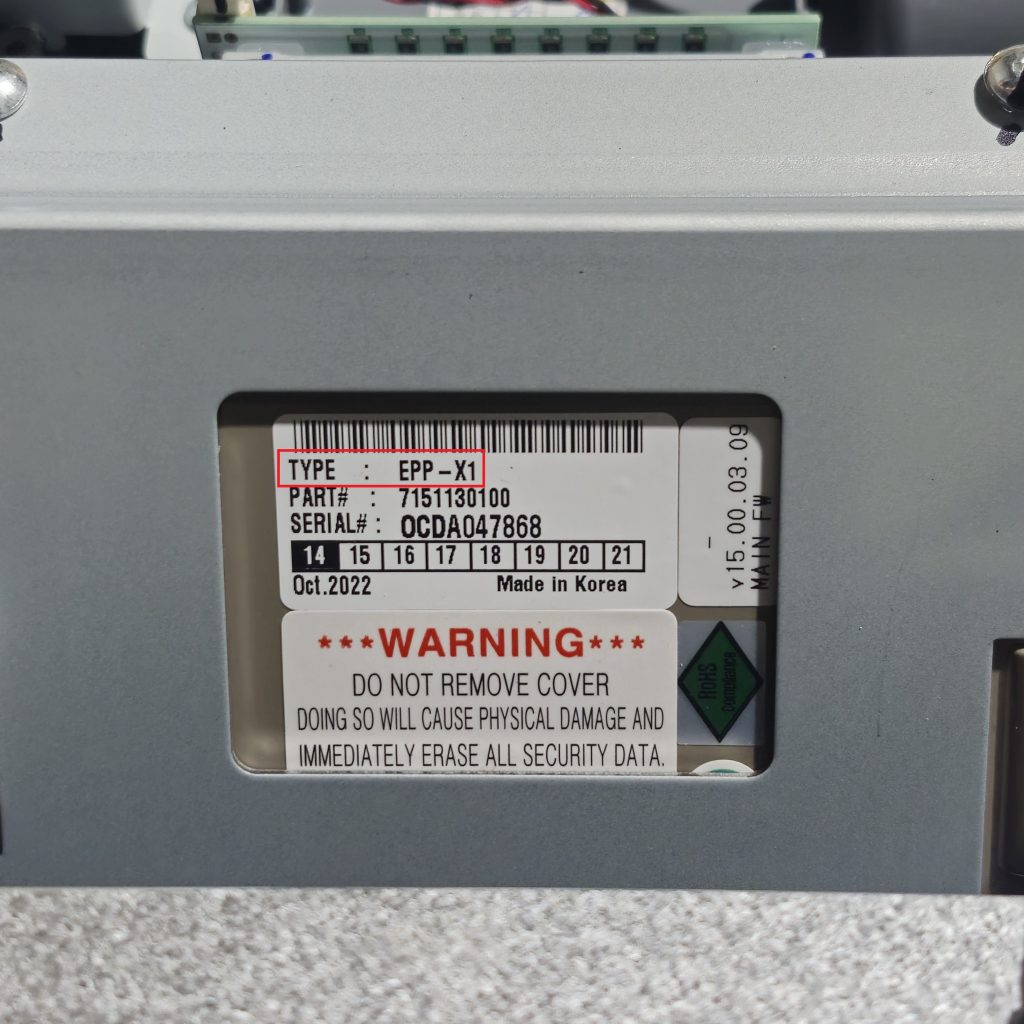

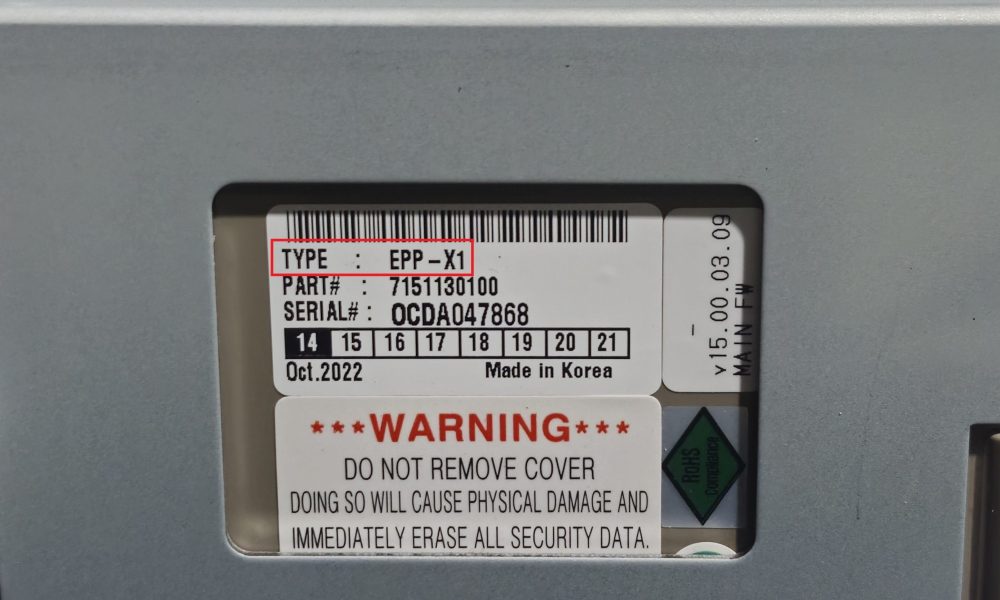

EPP-X1 – Additional paneling that prevents easy access to back of keypad, external pressure switches.

HYOSUNG COMPATIBILITY BREAKDOWN

Hyosung models must be able to support the latest software, and have an EPP 8000R (firmware v10.0x.xx) or EPP X1(v15.0x.xx) revision are compatible with the latest PCI standards.

HYOSUNG NON-COMPATIBLE ATMS – ATMs to be Replaced
Supported Keypad	Supported Models	Firmware	Upgradable?
3000K	1500 basic, 1800 basic, 1800CE, 2100T, NH1000, NH2200, 5000CE, 5050CE, 5300CE, Nanocash	V02.00.01-V02.01.00	Keypad is not TR-31 Compatible REPLACE ATM
5000K	1500 basic, 1800 basic, 1800CE, 2100T, NH1000, NH2200, 5000CE, 5050CE, 5300CE, Nanocash	V03.01.02-V03.13.00	Keypad is not TR-31 Compatible REPLACE ATM
6000K/R	1500 basic, 1800 basic, 1800CE, 2100T, NH1000, NH2200, 5000CE, 5050CE, 5300CE, Nanocash	V08.00.00-V08.21.01	Keypad is not TR-31 Compatible REPLACE ATM
8000R	1500 basic, 1800 basic, 1800CE, 2100T, NH1000, NH2200, 5000CE, 5050CE, 5300CE, Nanocash	V10.00.01 – V10.00.07	Not compatible – REPLACE ATM
EPP-X1	1500 basic, 1800 basic, 1800CE, 2100T, NH1000, NH2200, 5000CE, 5050CE, 5300CE, Nanocash	V15.00.01 – V15.00.03 or higher	Not compatible – REPLACE ATM

The ATMs listed in the table above must be replaced. Please call ATM of America or your agent to place an order for a new terminal. These ATMs will stop processing transactions on January 1, 2025, and cannot be upgraded.

HYOSUNG COMPATIBLE ATMS – Upgradeable Keypad
Supported Keypad	Supported Models	Firmware	Upgradable?
3000K	1800SE, NH2700(T), Halo, Halo II, Force, 4000W, MX5000(SE), 5200SE, 5300SE, 5400SE, 5600, 5700, 7600, 7800, 8100, 8200, 8300	V02.00.01-V02.01.00	ATM is not compatible UPGRADE KEYPAD
5000K	1800SE, NH2700(T), Halo, Halo II, Force, 4000W, MX5000(SE), 5200SE, 5300SE, 5400SE, 5600, 5700, 7600, 7800, 8100, 8200, 8300	V03.01.02-V03.13.00	ATM is not compatible UPGRADE KEYPAD
6000K/R	1800SE, NH2700(T), Halo, Halo II, Force, 4000W, MX5000(SE), 5200SE, 5300SE, 5400SE, 5600, 5700, 7600, 7800, 8100, 8200, 8300	V08.00.00-V08.21.01	Keypad is not TR-31 Compatible UPGRADE KEYPAD
8000R	1800SE, NH2700(T), Halo, Halo II, Force, 4000W, MX5000(SE), 5200SE, 5300SE, 5400SE, 5600, 5700, 7600, 7800, 8100, 8200, 8300	V10.00.01 – V10.00.07	No upgrades required.
EPP-X1	1800SE, NH2700(T), Halo, Halo II, Force, 4000W, MX5000(SE), 5200SE, 5300SE, 5400SE, 5600, 5700, 7600, 7800, 8100, 8200, 8300	V15.00.01 – V15.00.03 or higher	No upgrades required.

Please call or email ATM of America to order the correct keypad and arrange for a service provider to install the replacement EPP if necessary. If your ATM needs to be replaced, we will work with you to order a replacement unit and help arrange to have the ATM installed.

Genmega / Hantle Compatibility Breakdown

GENMEGA / HANTLE PHYSICAL KEYPAD IDENTIFICATION

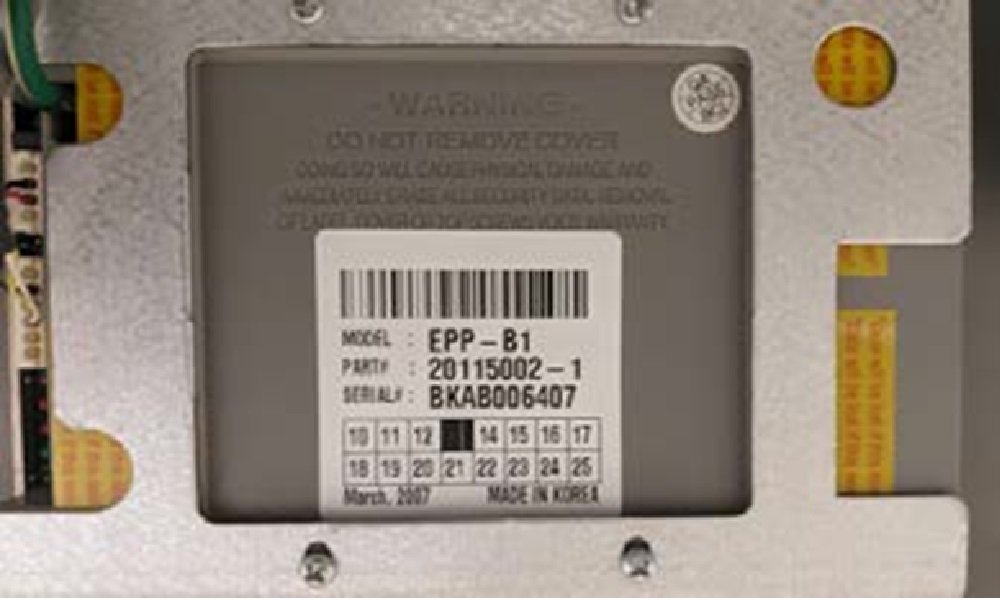

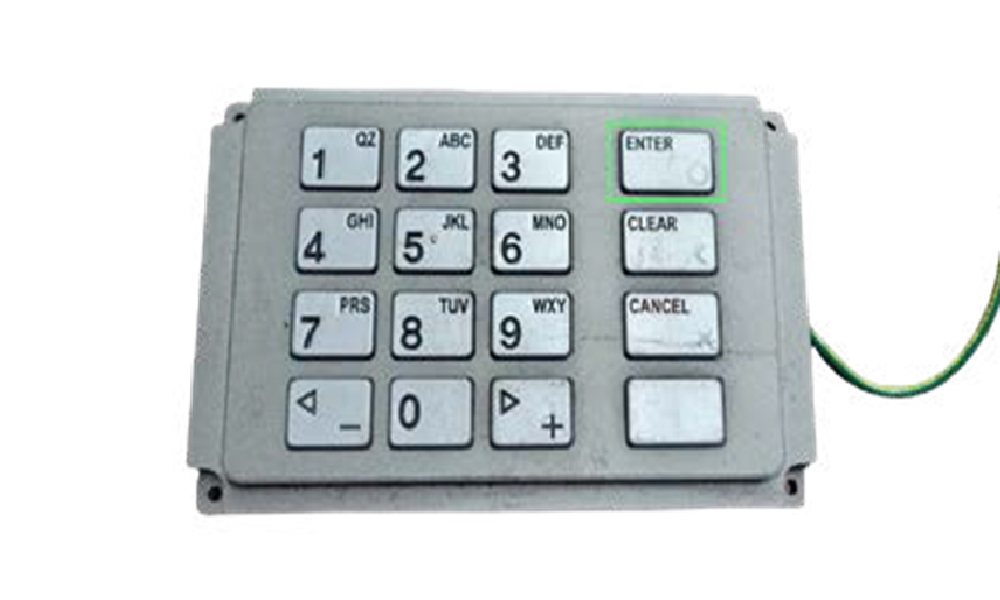

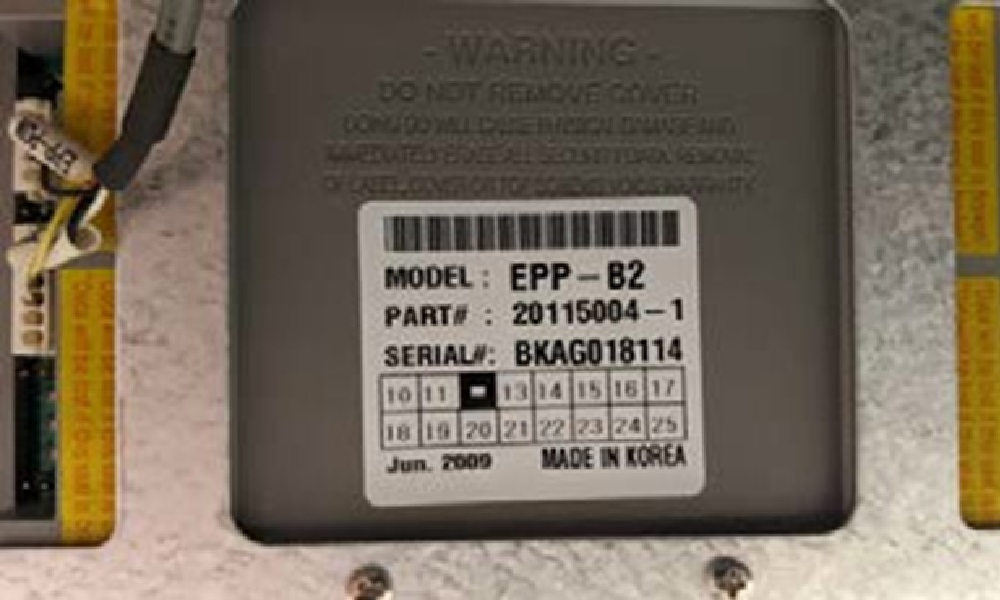

B1 or B2 – keypad has Cancel as top right button

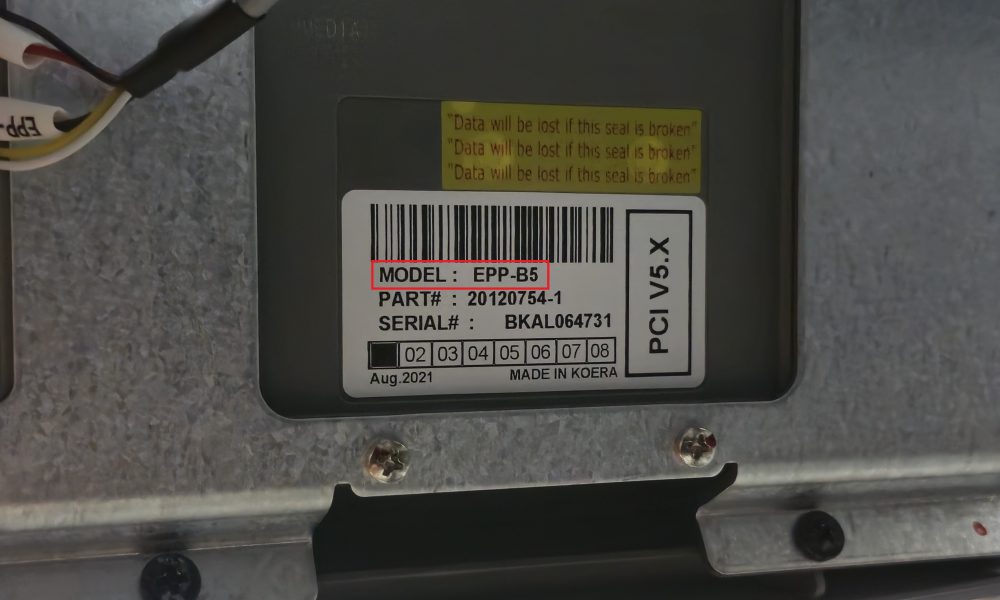

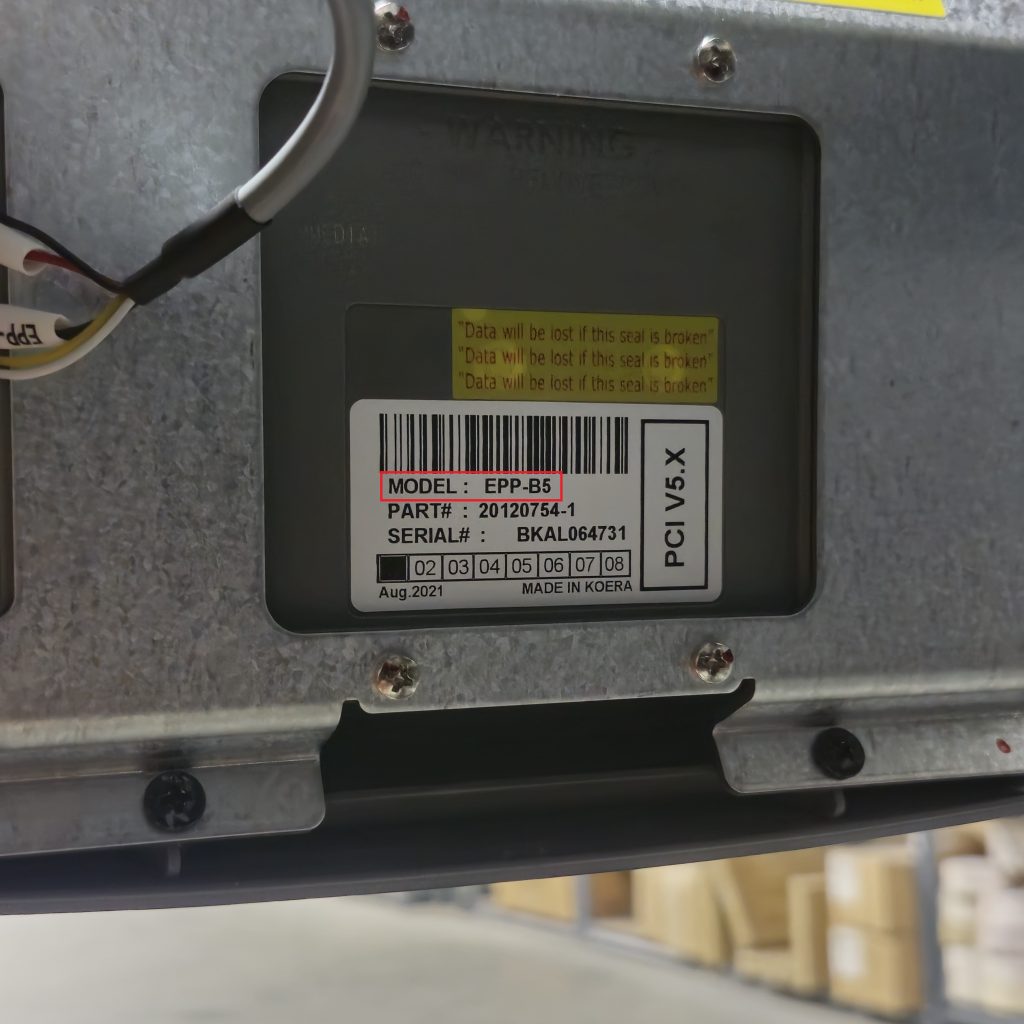

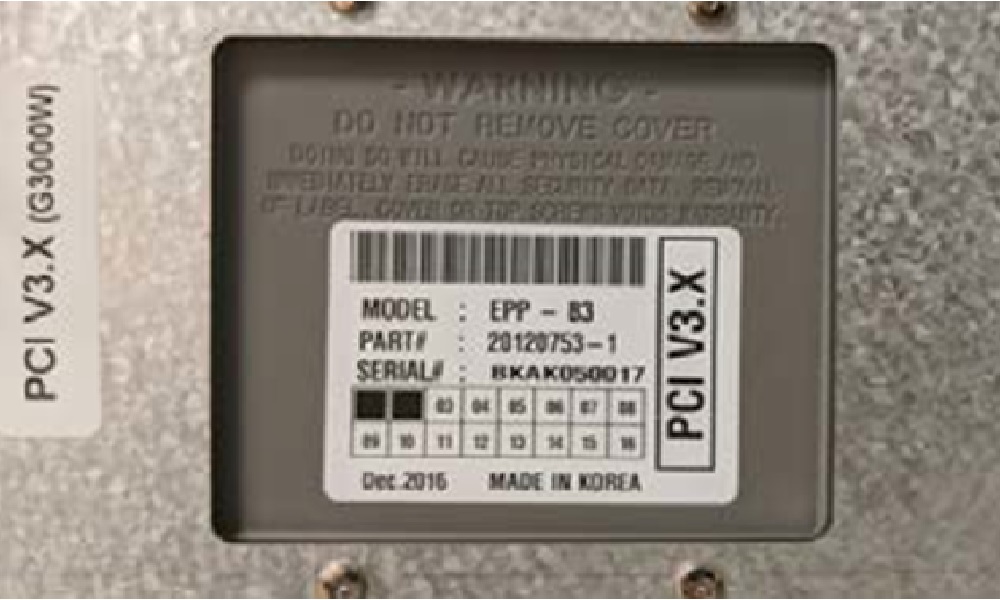

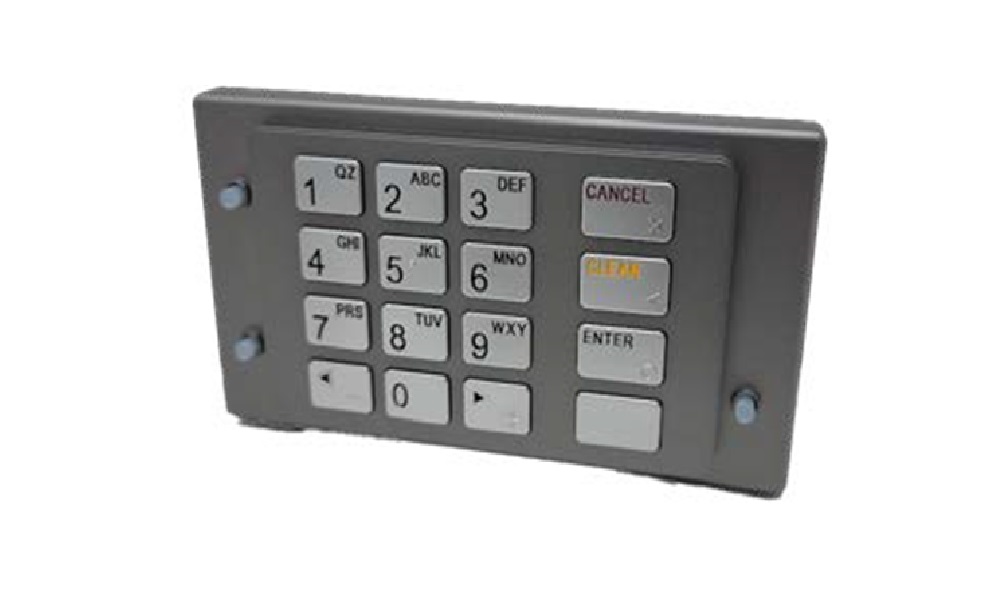

B3 or B5 - (Pressure switches on body) - No upgrades required.

GENMEGA / HANTLE COMPATIBILITY BREAKDOWN

Genmega and Hantle models must be able to support the latest software Versions and have an EPP-B3 or EPP-B5 keypad installed.

GENMEGA / HANTLE NON-COMPATIBLE ATMS – ATMs to be Replaced
Supported Keypad	ATM Models	Firmware	Upgradable?
EPP-B1	1700 Basic (non-W), E4000, C4000 (Starting with BYAF, or BYAB05000 or lower)	V03.02.01 – V03.05.03	Keypad is not TR-31 Compatible REPLACE ATM
EPP-B2	1700 Basic (non-W), E4000, C4000 (Starting with BYAF, or BYAB05000 or lower)	V03.06.00 – V03.13.00	Keypad is not TR-31 Compatible REPLACE ATM
EPP-B3	1700 Basic (non-W), E4000, C4000 (Starting with BYAF, or BYAB05000 or lower)	V04.00.09	Keypad is not TR-31 Compatible REPLACE ATM
EPP-B5	1700 Basic (non-W), E4000, C4000 (Starting with BYAF, or BYAB05000 or lower)	V05.07.00 or higher	Keypad is not TR-31 Compatible REPLACE ATM

GENMEGA / HANTLE COMPATIBLE ATMS – Upgradeable Keypad
Supported Keypad	ATM Models	Firmware	Upgradable?
EPP-B1	1700W, C6000, T4000, G1900, G2500, G2900, G3000(W), G3500, GT3000, GT5000, and newer C4000 models	V03.02.01 – V03.05.03	ATM is not compatible UPGRADE KEYPAD
EPP-B2	1700W, C6000, T4000, G1900, G2500, G2900, G3000(W), G3500, GT3000, GT5000, and newer C4000 models	V03.06.00 – V03.13.00	ATM is not compatible UPGRADE KEYPAD
EPP-B3	1700W, C6000, T4000, G1900, G2500, G2900, G3000(W), G3500, GT3000, GT5000, and newer C4000 models	V04.00.09	No upgrade required.
EPP-B5	1700W, C6000, T4000, G1900, G2500, G2900, G3000(W), G3500, GT3000, GT5000, and newer C4000 models	V05.07.00 or higher	No upgrade required.

Triton Compatibility Breakdown

TRITON PHYSICAL KEYPAD IDENTIFICATION

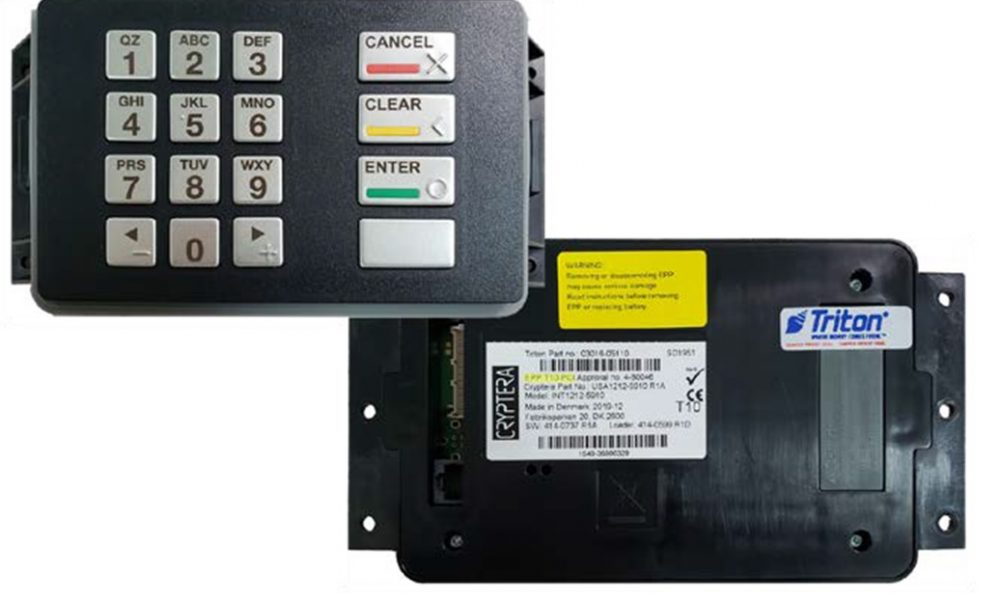

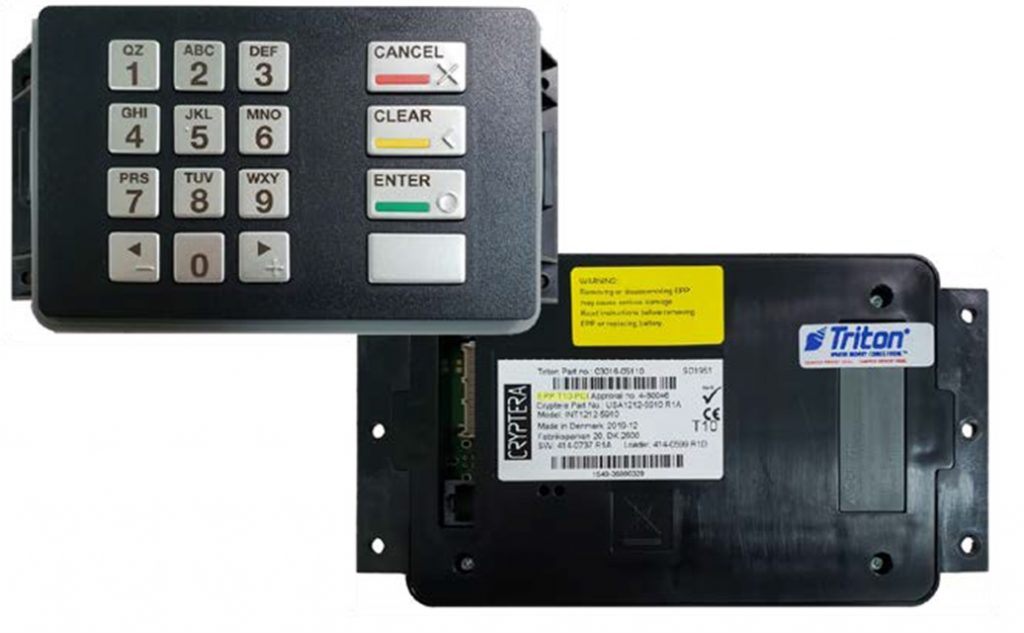

T10 – Must show “EPP T10 PCI” or “SW: 414-0737”, or else it will need replaced.

TRITON COMPATIBILITY BREAKDOWN

Triton models must be able to support the latest software Versions for X-Scale, X2 and X3 mainboards, along with a T10 keypad.

TRITON NON-COMPATIBLE ATMS – ATMs to be Replaced
Supported Keypad	Supported Models	Firmware	Upgradable?
T5	8100, 9100, 9600, 9700	414-0391	ATM is not compatible REPLACE ATM
T6	8100, 9100, 9600, 9700	VP-07.02	Keypad is not TR-31 Compatible REPLACE ATM
T7	8100, 9100, 9600, 9700	SP-07.03.004	ATM is not compatible REPLACE ATM
T9	8100, 9100, 9600, 9700	414-0702	ATM is not compatible REPLACE ATM
T10	8100, 9100, 9600, 9700	414-0737	ATM is not compatible REPLACE ATM

TRITON UPGRADABLE ATMS – Upgradeable Keypad
Supported Keypad	Supported Models	Firmware	Upgradable?
T5	RL1600, RL2000,RL5000, RT2000, FT5000, Argo	414-0391	Keypad is not TR-31 Compatible REPLACE KEYPAD
T7	RL1600, RL2000,RL5000, RT2000, FT5000, Argo	SP-07.03.004	Keypad is not TR-31 Compatible REPLACE KEYPAD
T9	RL1600, RL2000,RL5000, RT2000, FT5000, Argo	414-0702	Keypad is not TR-31 Compatible REPLACE KEYPAD
